A2-2 · Diamond Wheels
Beveling Machine Diamond Wheel
Diamond wheel for beveling machines, built as the entry product for glass bevel processing pages.
View specifications →Wheels for beveling machine positions

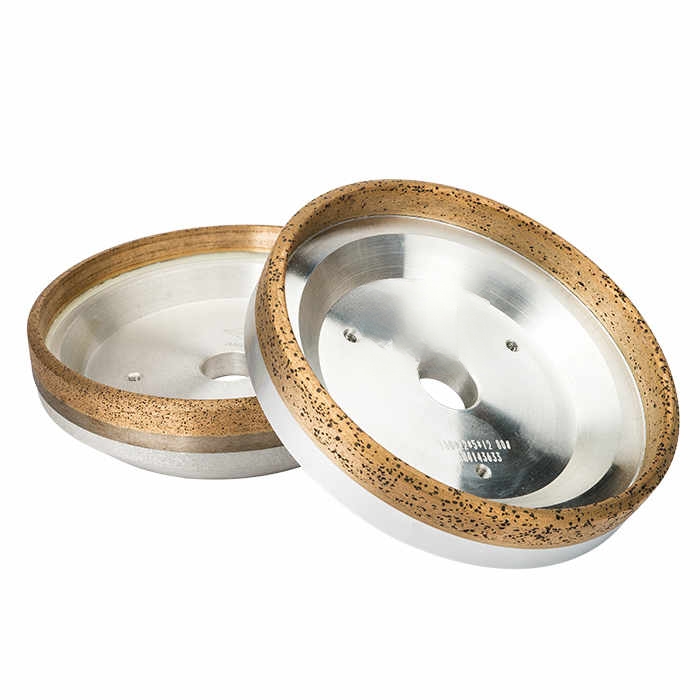

Glass Beveling Wheels for Diamond Grinding and Resin Fine Grinding
ZHUIFENG supplies diamond and resin wheels for glass beveling and shape-beveling machines. Bevel width, glass thickness, bevel angle, wheel position and current wheel profile should be confirmed before quotation.
Search focusbevel diamond wheelglass beveling wheelsbeveling machine diamond wheelglass beveling wheeldiamond wheel for glass
Recommended products
Glass Beveling Wheels products for glass processing
Match the wheel family to the machine, wheel position, glass thickness and required edge result before requesting a quote.
B3-1 · Resin Wheels
Three-Band Resin Wheel with Aluminum Body
Three-band resin wheel integrating coarse, medium and fine grinding for shape-beveling machines.
View specifications →
P110006 · Polishing Wheels
10S Glass Polishing Wheel for Straight-Line and Double-Edging Machines
10S glass polishing wheel for final polishing on straight-line edging and double-edging machines, available for chamfer and bottom-edge polishing positions.
View specifications →
A3-3 / A3-4 · Diamond Wheels
Diamond Profile Wheel
Profile diamond wheel series for round edge, straight edge, pencil edge and OEM shape-processing requirements.
View specifications →Application guidance
Beveling process fit
Glass beveling is not the same as ordinary straight edging. Wheel selection should follow the beveling machine position, target bevel width, glass thickness and required edge finish.
- A2-2 diamond wheel is the main entry product for beveling-machine grinding.
- B3-1 three-band resin wheel can be reviewed for shape-beveling fine grinding.
- 10S40 polishing wheel is linked as a finishing-stage reference after grinding.
- A3 profile wheels support shaped edge and custom-profile discussions.
Application guidance
What must be confirmed
A beveling wheel quotation needs more than OD and bore. The bevel geometry and machine position decide whether a wheel is technically suitable.
- Confirm bevel width, bevel angle and glass thickness before selecting grit.
- Send the current wheel front photo, side profile and mounting face.
- Check whether the process is straight beveling, shape beveling or profile grinding.
- Review the following resin and polishing positions when the buyer reports edge marks.
Application guidance
Technical limits
Current catalog data gives useful starting specifications, but some machine naming and parameter details still need confirmation before being used as guarantees.
- SB-10 wording is kept as catalog reference and should be verified before compatibility claims.
- No universal bevel width range, pressure, RPM, feed speed or lifetime is published yet.
- Three-band resin material and grit definitions still need technical confirmation.
Specification comparison
Choose by machine position and process stage
The table is a starting point for technical review. Confirm the installed wheel, drawing and machine setup before replacement.
| Product | Process role | Machine fit | Catalog sizes | Main page |
|---|---|---|---|---|
| A2-2 Beveling Machine Diamond Wheel | Diamond grinding stage | Glass beveling machines | 150 mm OD, 12 / 22 / 25 / 50 mm bore | View product → |
| B3-1 Three-Band Resin Wheel | Shape-beveling resin fine grinding | Shape-beveling machines | 150 mm OD, 12 / 22 mm bore | View product → |
| 10S40 Glass Polishing Wheel | Polishing after grinding | Glass edge polishing positions | 100-170 mm OD series | View product → |
| A3 Diamond Profile Wheel | Round edge, pencil edge and custom profile | Shape edging machines | A3-3 / A3-4 profile wheel series | View product → |
Before quotation
What to send for a reliable wheel recommendation
Complete specifications help prevent a wrong bore, wheel profile or machine-position quotation.
- Glass beveling or shape-beveling machine brand and model
- Wheel position and current process sequence
- Current wheel OD, bore, working layer and grit
- Bevel width, bevel angle and glass thickness
- Current wheel front photo and side-profile photo
- Current edge marks, chips or polishing issue
- Required sample quantity or repeat-order quantity
- OEM packing, label and destination market
Buyer questions
Frequently asked questions about bevel diamond wheel
What information is needed for a glass beveling wheel quote?
Machine model, wheel position, bevel width, bevel angle, glass thickness, current wheel size and current wheel photos are needed before quotation.
Is A2-2 only for beveling machines?
A2-2 is positioned as a beveling-machine diamond wheel. The catalog also mentions SB-10 shape edging equipment, but that wording should be verified before any compatibility claim.
Can B3-1 replace all beveling resin wheels?
No. B3-1 is a three-band resin wheel for selected shape-beveling applications. Machine acceptance, band layout and edge profile must be confirmed first.
Can you recommend beveling wheel parameters directly?
Not safely without machine and process details. Beveling parameters depend on machine design, spindle condition, wheel sequence, cooling, glass thickness and target bevel geometry.
Get a recommendation
Send your current wheel photo and machine details.
ZHUIFENG will review the product family and basic specification before sample or repeat-order quotation.
