S600014 · Resin Wheels

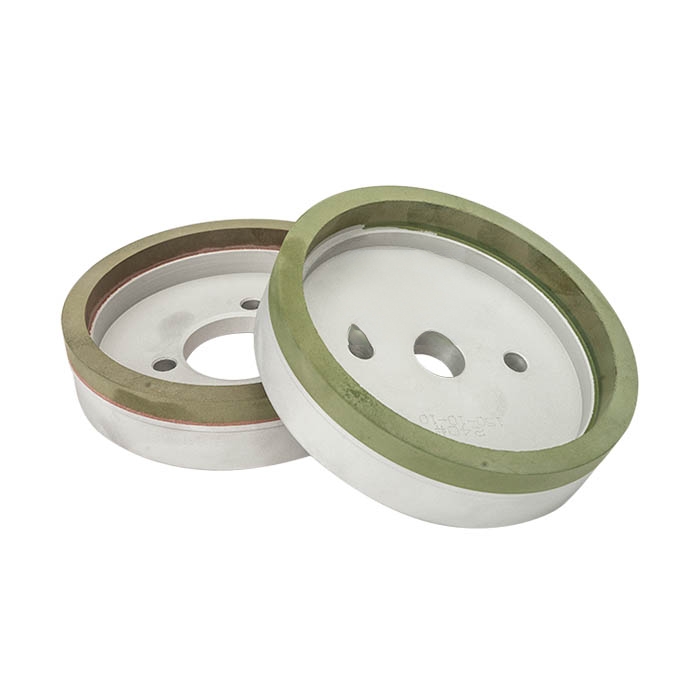

Green Resin Wheel for Glass Edging Machines
Green resin wheel for fine glass-edge grinding after diamond wheels and before polishing wheels on straight-line and double-edging machines.
View specifications →Fine grinding after diamond wheels
Resin Grinding Wheel for Glass Edging Machines
ZHUIFENG resin wheels support the fine-grinding stage after diamond wheels on glass edging and shape-beveling machines. Selection depends on the previous diamond wheel marks, machine position, glass thickness and desired polishing result.
Search focusresin wheel for glass edgingresin cup wheelresin diamond grinding wheelresin bond diamond grinding wheelresin grinding wheel
Recommended products
Resin Wheel for Glass Edging products for glass processing
Match the wheel family to the machine, wheel position, glass thickness and required edge result before requesting a quote.
B3-1 · Resin Wheels
Three-Band Resin Wheel with Aluminum Body
Three-band resin wheel integrating coarse, medium and fine grinding for shape-beveling machines.
View specifications →
P110006 · Polishing Wheels
10S Glass Polishing Wheel for Straight-Line and Double-Edging Machines
10S glass polishing wheel for final polishing on straight-line edging and double-edging machines, available for chamfer and bottom-edge polishing positions.
View specifications →
Q5 · Diamond Wheels
Diamond Cup Wheel for Glass Edging Machines
Q5 diamond cup wheel for straight-line and double-edging machines, used for straight glass edges and chamfered glass edges with sharp, stable grinding performance.
View specifications →Application guidance
Fine grinding position
Resin wheels are usually reviewed after diamond grinding positions. Their role is to reduce rough grinding marks and prepare the edge for polishing, but the exact result depends on the whole wheel sequence.
- Use after diamond wheel positions when the machine layout requires fine grinding.
- Review the previous diamond wheel grit and edge marks before choosing resin grit.
- Connect resin wheel selection to the following polishing wheel, not only to the current defect.
- Do not treat resin wheels as a standalone cure for every chip or polishing problem.
Application guidance
Standard and shape-beveling options
The first English resin landing page should cover both standard straight-line/double-edger resin wheels and the specialized three-band wheel used on shape-beveling machines.
- B1-4 standard green resin cup wheel covers straight-line and double-edger fine grinding needs.
- B3-1 aluminum-body three-band resin wheel covers specialized shape-beveling applications.
- C1-1 10S40 polishing wheel is linked as the next finishing step after resin fine grinding.
Application guidance
Material wording caution
Some buyer keywords use phrases such as resin bond diamond grinding wheel. Current catalog facts confirm resin wheels, but exact material wording and performance comparisons still need technical verification.
- Do not claim green resin is better than black resin without test evidence.
- Do not publish universal RPM, feed speed, pressure or lifetime claims yet.
- Confirm the actual meaning of green resin, green sand and three-band numbering before detailed technical claims.
Specification comparison
Choose by machine position and process stage
The table is a starting point for technical review. Confirm the installed wheel, drawing and machine setup before replacement.
| Product | Best fit | Machine fit | Catalog sizes | Main page |
|---|---|---|---|---|
| B1-4 Standard Green Resin Cup Wheel | Fine grinding after diamond wheels | Straight-line edging and double edging machines | 100 / 130 / 150 / 175 mm OD | View product → |
| B3-1 Three-Band Resin Wheel | Integrated coarse / medium / fine resin grinding | Shape-beveling machines | 150 mm OD, 12 / 22 mm bore | View product → |
| 10S40 Glass Polishing Wheel | Polishing after diamond and resin grinding | Glass edge polishing positions | 100-170 mm OD series | View product → |
| A1-4 Diamond Cup Wheel | Previous rough grinding stage before resin | Straight-line edging and double edging machines | 100 / 130 / 150 / 175 mm OD | View product → |
Before quotation
What to send for a reliable wheel recommendation
Complete specifications help prevent a wrong bore, wheel profile or machine-position quotation.
- Machine type and brand
- Wheel position and current wheel sequence
- Current resin wheel OD, bore, working layer and grit
- Previous diamond wheel model and grit if known
- Current edge marks, chips or polishing pressure issue
- Glass thickness range and edge type
- Photos of current wheel and processed edge
- Quantity, sample request and OEM packing requirement
Buyer questions
Frequently asked questions about resin wheel for glass edging
When should a glass factory use a resin wheel?
A resin wheel is commonly reviewed after diamond grinding positions when the edge needs fine grinding before polishing. The correct setup depends on the machine and the previous wheel marks.
Is a resin cup wheel the same as a diamond grinding wheel?
No. Diamond wheels usually handle rough grinding and shaping. Resin wheels usually follow for fine grinding and preparation before polishing.
Can you recommend B1-4 or B3-1 from photos?
Photos help, but the machine type, wheel position, OD, bore, working layer and current edge problem are also needed before recommendation.
Can you publish pressure or feed-speed settings?
Not as a universal value. Pressure and feed speed depend on machine condition, wheel sequence, glass thickness, coolant and target edge result.
Get a recommendation
Send your current wheel photo and machine details.
ZHUIFENG will review the product family and basic specification before sample or repeat-order quotation.
